Pista Linear Light Flaps Track 48V 2636 1x

13450932
FFD_ LED 3000K 1-10V DI Black Structure
42.5W 1822lm 42lm/W CRI90
3000K LED Driver Included
Pista Linear Light Flaps Track 48V 2636 1x
Data sheet Technical support
Request a quote
Specifications Smart Lighting Accessories Compatible with Downloads

Specifications

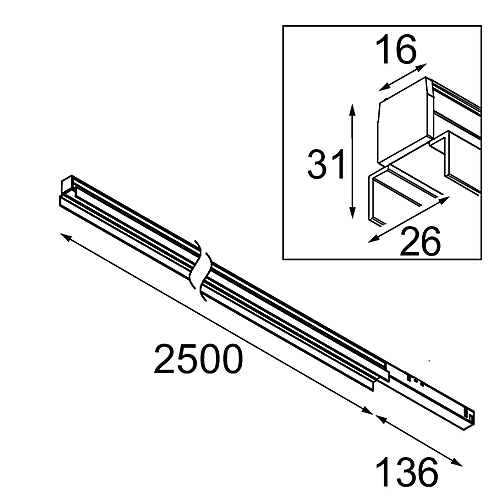

LINED_134504XX_02.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
48vdc
IP Rating
20
LED Type
LED flexible PCB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
3
Lifetime
L80B10 @50,000 Hours
CIE Flux Code
68, 93, 99, 100, 45
Electrical Class
III
Dimming Protocol
1-10v
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
2085
Net Weight (g)
1155
Delivered Lumens (lm)
1822
Luminaire Power (W)
42.5
Efficacy (lm/W)
42
Glare Rating (UGR)
17
  • 3500K and 4000K on request
  • This black Track 48V linear module comes with a black track adapter. Exceptions are only possible on request.
  • This Track 48V luminaire can not be used in the upper part of a Pista Track 48V Profile Suspended Up/Down.

1. Smart Lighting Accessories
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000152
Switch Dimmer Hue White
70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White

Compatible with

Show
Show
  • +1

Pista Track 48V High Surface

  • +1

Pista Track 48V High Suspended

  • +1

Pista Track 48V High Suspended Up/Down

Pista Track 48V Recessed

Pista Track 48V Recessed Trimless

  • +1

Pista Track 48V Surface

  • +1

Pista Track 48V Suspended

Downloads

Download all
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_1013939_PISTA-LINEAR_930.jpg
    • CRI_1013939_PISTA-LINEAR-NIGHT-LIGHT_930.jpg
    • CRI_1013934_PISTA-LINEAR_927.jpg
    • CRI_1014218_PISTA-LINEAR-NIGHT-LIGHT_935.JPG
    • CRI_1014218_PISTA-LINEAR_935.JPG
    • CRI_1013934_PISTA-LINEAR-NIGHT-LIGHT_927.jpg
    • TM30_1014218_PISTA-LINEAR_935.JPG
    • TM30_1013934_PISTA-LINEAR-NIGHT-LIGHT_927.jpg
    • TM30_1013939_PISTA-LINEAR-NIGHT-LIGHT_930.jpg
    • TM30_1013939_PISTA-LINEAR_930.jpg
    • TM30_1013934_PISTA-LINEAR_927.jpg
    • TM30_1014218_PISTA-LINEAR-NIGHT-LIGHT_935.JPG
  • SKP file
  • OBJ file
  • FBX files
  • Line drawings
    • SKP_134509XX_SURF_PISTA-LINEAR-FLAPS-2500-DIM_01.skp
    • OBJ_134509XX_SURF_PISTA-LINEAR-FLAPS-2500-DIM_01.obj
    • 3DS_134509XX_SURF_PISTA-LINEAR-FLAPS-2500-DIM_01.3ds
    • FBX_134509XX_SURF_PISTA-LINEAR-FLAPS-2500-DIM_01.fbx
    • ELABEL_PistaLinear_3000K.pdf
    • ELABEL_PistaLinear_2700K.pdf
    • REACH_PISTA LINEAR_06.pdf
    • CE_13450932_04.pdf
    • UKCA_13450932_02.pdf
