Flat Moon Flat Moon Eclips Recessed970 1x

13383509
FFD_ LED 4000K DALI/Push-Dim DI White Structure
77W 6191lm 80lm/W CRI90
Flat Moon Eclips Recessed 970 1x
Datasheet Technical support
Request a quote
Specifications Smart Lighting Accessories Compatible with Downloads

Specifications
LINED_133810XX_133813XX_REC_V0.pdf
Cut-Out Size (mm)
ø950
Mounting Depth (mm)
150
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
20
Luminous flux per lamp (lm)
6191
Luminaire Power (W)
77
Efficacy (lm/W)
80
Glare Rating (UGR)
21
LED Type
LED PCB
Light Sources
1
Colour Temperature
4000K
Binning (SDCM)
3
Lifetime
L80B20 @50,000 Hours

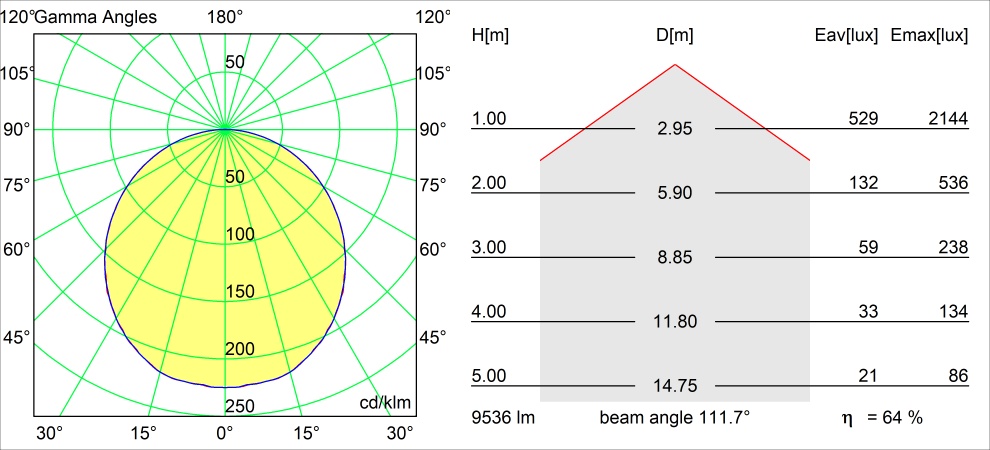

CIE Flux Code
47, 78, 95, 100, 65
Electrical Class
I
Dimming Protocol
Dali, Push-dim
DALI Standard
DALI version-1
Glow Wire Rating
650°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
20600
Net Weight (g)
17600
Cut-Out Size (mm)
ø950
Mounting Depth (mm)
150
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
20
LED Type
LED PCB
Light Sources
1
Colour Temperature
4000K
Binning (SDCM)
3
Lifetime
L80B20 @50,000 Hours
CIE Flux Code
47, 78, 95, 100, 65
Electrical Class
I
Dimming Protocol
Dali, Push-dim
DALI Standard
DALI version-1
Glow Wire Rating
650°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
20600
Net Weight (g)
17600
Luminous flux per lamp (lm)
6191
Luminaire Power (W)
77
Efficacy (lm/W)
80
Glare Rating (UGR)
21

1. Smart Lighting Accessories

Casambi Module

Casambi Module

13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

Downloads

Download all ;
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_FLATMOONLED_3000K.jpg
    • CRI_FLATMOONLED_4000K.jpg
    • CRI_FLATMOONLED_2700K.jpg
    • TM30_3013325_FORTIMO LEDLINE 927.jpg
    • TM30_3013327_FORTIMO LEDLINE 940.jpg
    • TM30_3013326_FORTIMO LEDLINE 930.jpg
  • Tender text
    • REACH_FLAT MOON_06.pdf
    • CE_13383509_04.pdf
    • UKCA_13383509_02.pdf
  • Line drawings
  • SKP files
    • CAD2D_REC_FLAT-MOON-ECLIPS_V0.dwg
    • CAD3D_REC_133810XX_FLAT-MOON-ECLIPS-970_V0.dwg
    • OBJ_REC_133810XX_FLAT-MOON-ECLIPS-970_01.obj
    • SKP_REC_133810XX_FLAT-MOON-ECLIPS-970_01.skp
    • 3DS_REC_133810XX_FLAT-MOON-ECLIPS-970_01.3ds
    • FBX_REC_133810XX_FLAT-MOON-ECLIPS-970_01.fbx
    • ELABEL_FlatMoon_2700K.pdf
    • ELABEL_FlatMoon_4000K.pdf
    • ELABEL_FlatMoon_3000K.pdf
