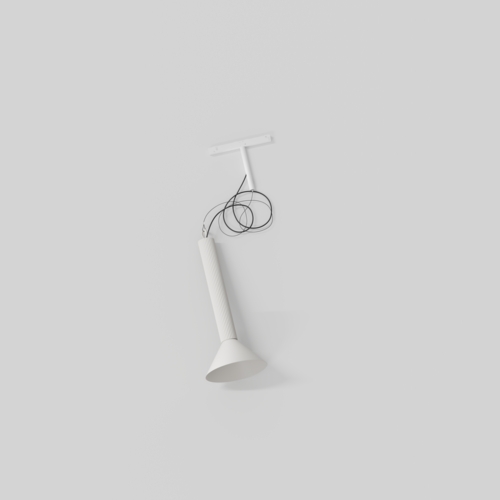

Extruded Extruded Track 48V Suspended46 300 1x

13690336
LED 2700K Flood DALI Grey White Structure - Grey White Matt
8.5W 740lm 87lm/W CRI90
Extruded Track 48V Suspended 46 300 1x
Data sheet Technical support
Request a quote
Specifications Smart Lighting Accessories Compatible with Downloads

Specifications
LINED_136900XX_03.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
48vdc
IP Rating
20
Luminous flux per lamp (lm)
740
Luminaire Power (W)
8.5
Efficacy (lm/W)
87
Glare Rating (UGR)
24
  • White Pista 48V luminaires have a white track adapter. All other Pista 48V luminaires have a black track adapter. Deviation from this is only possible on request.
  • This Track 48V luminaire can not be used in the upper part of a Pista Track 48V Profile Suspended Up/Down.
  • Longer suspension cable on request (standard length is 2 meter)
  • White Pista 48V luminaires have a white track adapter. Black Pista 48V luminaires have a black track adapter. Deviation from this is only possible on request
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
42.3
CIE Flux Code
98, 100, 100, 100, 77
Electrical Class
III
Dimming Protocol
Dali
DALI Standard
DALI-2
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Gross Weight (g)
1280
Net Weight (g)
805
Light Source Type
LED
Lamp Included
Yes
Input Voltage
48vdc
IP Rating
20
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
42.3
CIE Flux Code
98, 100, 100, 100, 77
Electrical Class
III
Dimming Protocol
Dali
DALI Standard
DALI-2
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Gross Weight (g)
1280
Net Weight (g)
805
  • White Pista 48V luminaires have a white track adapter. All other Pista 48V luminaires have a black track adapter. Deviation from this is only possible on request.
  • This Track 48V luminaire can not be used in the upper part of a Pista Track 48V Profile Suspended Up/Down.
  • Longer suspension cable on request (standard length is 2 meter)
  • White Pista 48V luminaires have a white track adapter. Black Pista 48V luminaires have a black track adapter. Deviation from this is only possible on request
Luminous flux per lamp (lm)
740
Luminaire Power (W)
8.5
Efficacy (lm/W)
87
Glare Rating (UGR)
24

1. Smart Lighting Accessories

Casambi Module 48V

Casambi Module 48V

13470209
Track 48V Dim Module Casambi DALI In Track White Structure
13470232
Track 48V Dim Module Casambi DALI In Track Black Structure
13470302
Track 48V Dim Module Casambi DALI Remote
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

Downloads

Download all ;
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_1014209_V6HD_935.jpg
    • CRI_1014208_V6HD_930.jpg
    • CRI_1014207_V6HD_927.jpg
    • TM30_1014208_V6HD_930.jpg
    • TM30_1014207_V6HD_927.jpg
    • TM30_1014209_V6HD_935.jpg
  • Tender text
  • SKP file
  • OBJ file
  • FBX files
  • CAD 3D files
  • Line drawings
    • CAD3D_136900XX_TRACK48V_EXTRUDED-300_LED_01.dwg
    • 3DS_136900XX_TRACK48V_EXTRUDED-300_LED_01.3ds
    • FBX_136900XX_TRACK48V_EXTRUDED-300_LED_01.fbx
    • OBJ_136900XX_TRACK48V_EXTRUDED-300_LED_01.obj
    • SKP_136900XX_TRACK48V_EXTRUDED-300_LED_01.skp
    • ELABEL_Bridgelux_V6HD_4000K.pdf
    • ELABEL_Bridgelux_V6HD_3500K.pdf
    • ELABEL_Bridgelux_V6HD_3000K.pdf
    • ELABEL_Bridgelux_V6HD_2700K.pdf
    • REACH_EXTRUDED_06.pdf
    • CE_13690336_04.pdf

Compatible with

Show
Show
  • +1

Pista Track 48V High Surface

  • +1

Pista Track 48V High Suspended

  • +1

Pista Track 48V High Suspended Up/Down

Pista Track 48V Recessed

Pista Track 48V Recessed Trimless

  • +1

Pista Track 48V Surface

  • +1

Pista Track 48V Suspended
