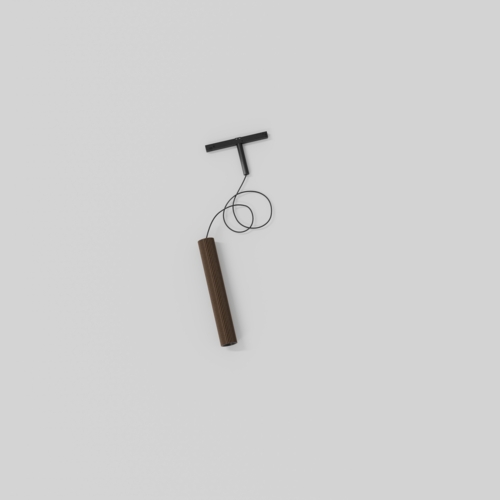

Extruded Stripped Extruded Stripped Track 48V Suspended46 300 1x

13800082
LED 2700K Flood 1-10V DI Bronze Anodised
10.3W 779lm 76lm/W CRI90
Extruded Stripped Track 48V Suspended 46 300 1x
Data sheet Technical support
Request a quote
Specifications Smart Lighting Accessories Compatible with Downloads

Specifications

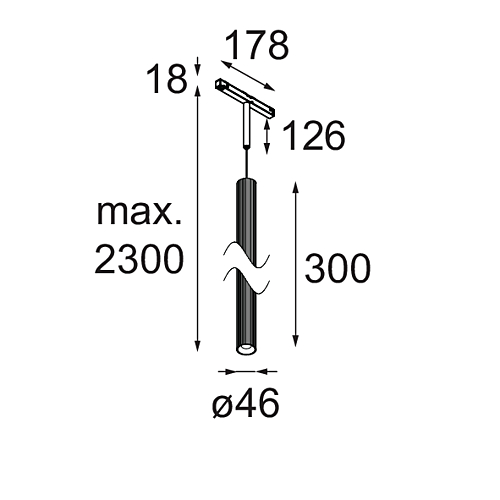

LINED_138000XX_01.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
48vdc
IP Rating
20
Luminous flux per lamp (lm)
779
Luminaire Power (W)
10.3
Efficacy (lm/W)
76
Glare Rating (UGR)
25
  • White Pista 48V luminaires have a white track adapter. All other Pista 48V luminaires have a black track adapter. Deviation from this is only possible on request.
  • This Track 48V luminaire can not be used in the upper part of a Pista Track 48V Profile Suspended Up/Down.
  • Longer suspension cable on request (standard length is 2 meter)
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours

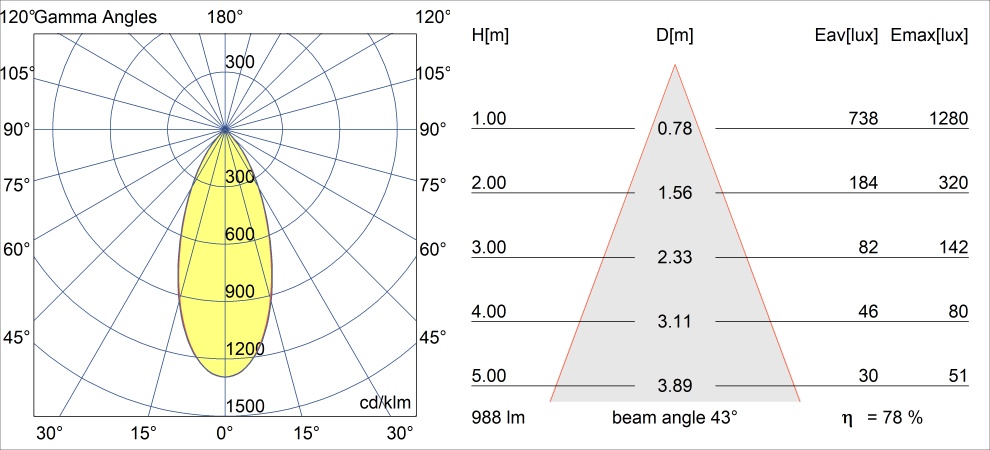

Measured Beam Angle (°)
43
CIE Flux Code
96, 100, 100, 100, 79
Electrical Class
III
Dimming Protocol
1-10v
Indoor/Outdoor
Indoor
Gross Weight (g)
995
Net Weight (g)
684
Light Source Type
LED
Lamp Included
Yes
Input Voltage
48vdc
IP Rating
20
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
43
CIE Flux Code
96, 100, 100, 100, 79
Electrical Class
III
Dimming Protocol
1-10v
Indoor/Outdoor
Indoor
Gross Weight (g)
995
Net Weight (g)
684
  • White Pista 48V luminaires have a white track adapter. All other Pista 48V luminaires have a black track adapter. Deviation from this is only possible on request.
  • This Track 48V luminaire can not be used in the upper part of a Pista Track 48V Profile Suspended Up/Down.
  • Longer suspension cable on request (standard length is 2 meter)
Luminous flux per lamp (lm)
779
Luminaire Power (W)
10.3
Efficacy (lm/W)
76
Glare Rating (UGR)
25

1. Smart Lighting Accessories

Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White

Downloads

Download all ;
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_1015283_V6HD-G8 927.JPG
    • CRI_1015285_V6HD-G8 935.JPG
    • CRI_1015284_V6HD-G8 930.JPG
    • CRI_1015286_V6HD-G8 940.JPG
    • TM30_1015284_V6HD-G8 930.JPG
    • TM30_1015285_V6HD-G8 935.JPG
    • TM30_1015283_V6HD-G8 927.JPG
    • TM30_1015286_V6HD-G8 940.JPG
  • Tender text
  • SKP file
  • OBJ file
  • FBX files
  • CAD 3D files
  • Line drawings
    • 3DS_138000XX_EXTRUDED_STRIPPED_TRACK_48V_SUSP_46 300 1XLED DI_01.3ds
    • CAD3D_138000XX_EXTRUDED_STRIPPED_TRACK_48V_SUSP_46 300 1XLED DI_01.dwg
    • FBX_138000XX_EXTRUDED_STRIPPED_TRACK_48V_SUSP_46 300 1XLED DI_01.fbx
    • OBJ_138000XX_EXTRUDED_STRIPPED_TRACK_48V_SUSP_46 300 1XLED DI_01.obj
    • SKP_138000XX_EXTRUDED_STRIPPED_TRACK_48V_SUSP_46 300 1XLED DI_01.skp
    • CAD2D_SURF_EXTRUDED_02.dwg
    • ELABEL_Bridgelux_V6HDG8_2700K.pdf
    • ELABEL_Bridgelux_V6HDG8_3000K.pdf
    • ELABEL_Bridgelux_V6HDG8_3500K.pdf
    • ELABEL_Bridgelux_V6HDG8_4000K.pdf
    • EPD_MODULAR_EXTRUDED_STRIPPED_SUSP_TRACK_48V_46_300_ANO_EU_01.pdf
    • EPD_MODULAR_EXTRUDED STRIPPED_SUSP_TRACK_48V_46_300_PAINT_EU_01.pdf
    • UKCA_13800082_02.pdf
    • CE_13800082_04.pdf
