11611032

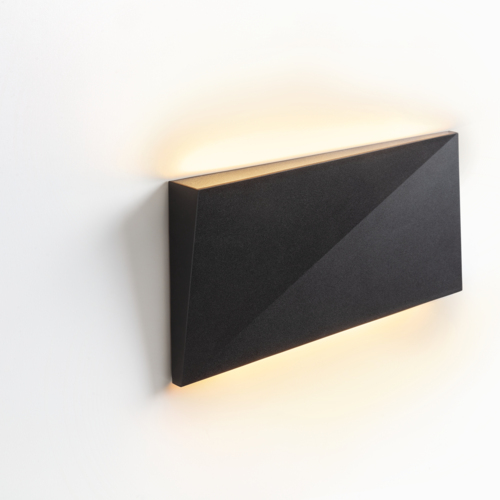

LED 2700K DE Black Structure

350mA 50.4Vf 17.6W 428lm 24lm/W CRI90

Specifications

Light Source Type: LED
Lamp Included: Yes
Input Voltage: Constant current driver required
IP Rating: 20

LED Type: LED PCB
Light Sources: 1
Colour Temperature: 2700K
Binning (SDCM): 3
Lifetime: L80B20 @50,000 Hours

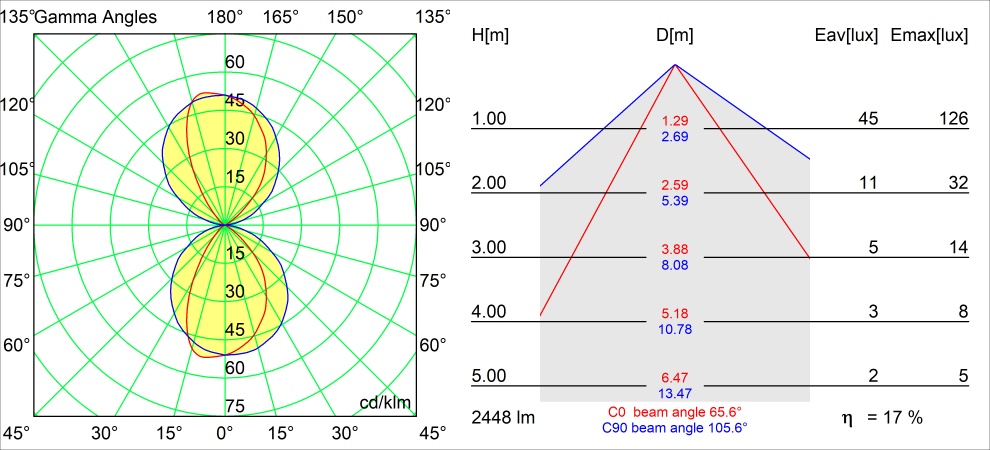

CIE Flux Code: 67, 93, 99, 50, 17

Electrical Class: III
Glow Wire Rating: 960°C
Indoor/Outdoor: Indoor
Adjustability: Not applicable
Gross Weight (g): 765
Net Weight (g): 672

Drive Current (mA)

350

Delivered Lumens (lm)

428

Luminaire Power (W)

LED Connected Load (W)

17.6

Min. LED Fwd Voltage (Vf)

48.6

Max. LED Fwd Voltage (Vf)

50.29

Efficacy (lm/W)

Glare Rating (UGR)

Can be installed on a single and double electrical connection box

1. Led Drivers

Required

350mA

Article no.	Driver	Min products	Max products	Dimension
11630630	LED Driver Constant Current Deep Dim DALI 350mA 50W 2 LED Output WD	1	2	152.5 x 76.2 x 30.1
11630930	LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 50W 2 LED Output WD	1	2	152.5 x 76.2 x 30.1
12403430	LED Driver Constant Current Non-Dim 350-1050mA 25-50W	1	1	124 x 79 x 22
12404230	LED Driver Constant Current Trailing Edge 350mA 18W	1	1	111 x 52 x 22
12405630	LED Driver Constant Current DALI 300-1050mA 16-36W	1	1	146.5 x 44 x 30
12406530	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD	1	1	124 x 79 x 22
12406630	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD	1	1	124 x 79 x 22
12406730	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W	1	1	124 x 79 x 22
12406830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W	1	1	124 x 79 x 22
12407130	LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W	1	1	146.5 x 44 x 30
12407830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W	1	2	124 x 79 x 22
12408330	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD	1	2	124 x 79 x 22
13470030	LED Driver Constant Current Casambi 300-1050mA 16-38W	1	1	146.5 x 44 x 30
13470130	LED Driver Constant Current Casambi 350-1050mA 25-60W	1	1	124 x 79 x 22
13630100	LED Driver Constant Current Zigbee 350-1050mA 25-60W	1	1	124 x 79 x 22

2. Smart Lighting Accessories

Casambi Module

13470100

Dim Module Casambi 1-10V

13470101

Dim Module Casambi Trailing Edge

13470102

Dim Module Casambi DALI

Casambi Switch

13470109

Switch Casambi White

Hue Bridge

70000616

Bridge Hue EU White

70000617

Bridge Hue UK White

Hue Module

13190230

Dim Module Hue 0-10V/1-10V 150-300W

Hue Sensor

70000191

Motion Sensor Hue Outside Black

70008054

Motion Sensor Hue White

Hue Switch

70000154

Switch Niko Pure Hue White Steel

70000155

Switch Niko Pure Hue Black Steel

70000213

Switch Smart Button Hue White

70000214

Switch Wall Module Hue

70000223

Switch Dimmer Hue White

Zigbee Module

13630200

Dim Module Zigbee DALI

3. Back-Up Units

Back-Up Unit Constant Current

12400210

Back-Up Unit Constant Current 1h DE

12400310

Back-Up Unit Constant Current 3h DE
