11653509

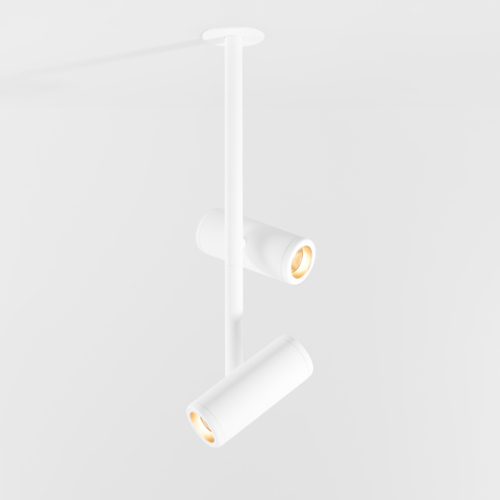

FFD_ LED 1800-3000K WD Flood DE White Structure

350mA 33.8Vf 12W 821lm 68lm/W CRI95

Specifications

Cut-Out Size (mm): ø54
Mounting Depth (mm): 40
Light Source Type: LED
Lamp Included: Yes
Input Voltage: Constant current driver required
IP Rating: 20

Drive Current (mA)

350

Delivered Lumens (lm)

821

LED Connected Load (W)

Min. LED Fwd Voltage (Vf)

30.6

Max. LED Fwd Voltage (Vf)

Efficacy (lm/W)

Glare Rating (UGR)

LED Type: LED COB
Light Sources: 2
Colour Temperature: 1800-3000K (Warm Dim)
Binning (SDCM): 3
Lifetime: L80B10 @50,000 Hours
Measured Beam Angle (°): 37

CIE Flux Code: 100, 100, 100, 100, 83
Electrical Class: III
Glow Wire Rating: 960°C
Indoor/Outdoor: Indoor
Adjustability: H 360° v 360°
Gross Weight (g): 2314

Net Weight (g): 1881

Cut-Out Size (mm): ø54
Mounting Depth (mm): 40
Light Source Type: LED
Lamp Included: Yes
Input Voltage: Constant current driver required
IP Rating: 20

LED Type: LED COB
Light Sources: 2
Colour Temperature: 1800-3000K (Warm Dim)
Binning (SDCM): 3
Lifetime: L80B10 @50,000 Hours
Measured Beam Angle (°): 37

CIE Flux Code: 100, 100, 100, 100, 83
Electrical Class: III
Glow Wire Rating: 960°C
Indoor/Outdoor: Indoor
Adjustability: H 360° v 360°
Gross Weight (g): 2314

Net Weight (g): 1881

Drive Current (mA)

350

Delivered Lumens (lm)

821

LED Connected Load (W)

Min. LED Fwd Voltage (Vf)

30.6

Max. LED Fwd Voltage (Vf)

Efficacy (lm/W)

Glare Rating (UGR)

1. Led Drivers

350mA

Article no.	Driver	Min products	Max products	Dimension
12406530	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD	1	1	124 x 79 x 22
12406630	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD	1	1	124 x 79 x 22
12408330	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD	1	1	124 x 79 x 22
13470130	LED Driver Constant Current Casambi 350-1050mA 25-60W	1	1	124 x 79 x 22
13630100	LED Driver Constant Current Zigbee 350-1050mA 25-60W	1	1	124 x 79 x 22

2. Smart Lighting Accessories

Casambi Module

13470100

Dim Module Casambi 1-10V

13470101

Dim Module Casambi Trailing Edge

13470102

Dim Module Casambi DALI

Casambi Switch

13470109

Switch Casambi White

Hue Bridge

70000616

Bridge Hue EU White

70000617

Bridge Hue UK White

Hue Module

13190230

Dim Module Hue 0-10V/1-10V 150-300W

Hue Sensor

70000191

Motion Sensor Hue Outside Black

70008054

Motion Sensor Hue White

Hue Switch

70000154

Switch Niko Pure Hue White Steel

70000155

Switch Niko Pure Hue Black Steel

70000213

Switch Smart Button Hue White

70000214

Switch Wall Module Hue

70000223

Switch Dimmer Hue White

Zigbee Module

13630200

Dim Module Zigbee DALI

3. Back-Up Units

Back-Up Unit Constant Current

12400210

Back-Up Unit Constant Current 1h DE

12400310

Back-Up Unit Constant Current 3h DE
