Split Wall Up/Down S 1x

12600029
FFD_ LED 2700K Trailing Edge DI White Structure - Black Matt
4.5W 32lm 7lm/W CRI90
2700K LED Driver Included
Split Wall Up/Down S 1x
Datasheet Technical support
Request a quote
Specifications Smart Lighting Accessories Compatible with Downloads

Specifications

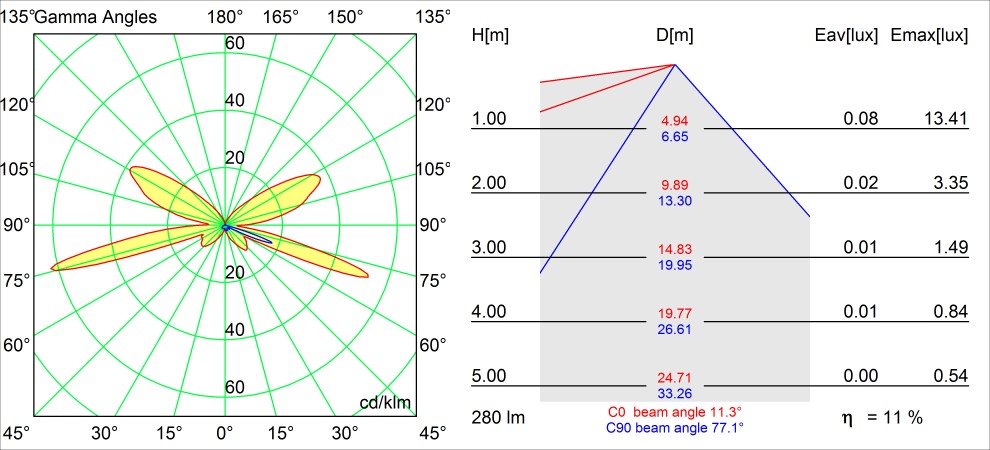

LINED_126000XX_SURF_SPLIT SMALL_LED 500lm_V0.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
20
LED Type
LED PCB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
3
Lifetime
L80B20 @50,000 Hours
Electrical Class
I
Dimming Protocol
Trailing edge
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
735
Net Weight (g)
640
Delivered Lumens (lm)
32
Luminaire Power (W)
4.5
Efficacy (lm/W)
7
Glare Rating (UGR)
22

1. Smart Lighting Accessories
Casambi Module

Casambi Module

13470101
Dim Module Casambi Trailing Edge
Casambi Switch

Casambi Switch

13470109
Switch Casambi White

Downloads

Download all
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
  • CRI files
  • TM30 files
    • REACH_SPLIT_06.pdf
    • CE_12600029_04.pdf
    • UKCA_12600029_02.pdf
  • Line drawings
  • SKP files
    • CAD3D_126000XX_SURF_SPLIT_V0.dwg
    • OBJ_126000XX_SURF_SPLIT_01.obj
    • SKP_126000XX_SURF_SPLIT_01.skp
    • 3DS_126000XX_SURF_SPLIT_01.3ds
    • FBX_126000XX_SURF_SPLIT_01.fbx
  • Energy Label
