  1. Go back
Click to share

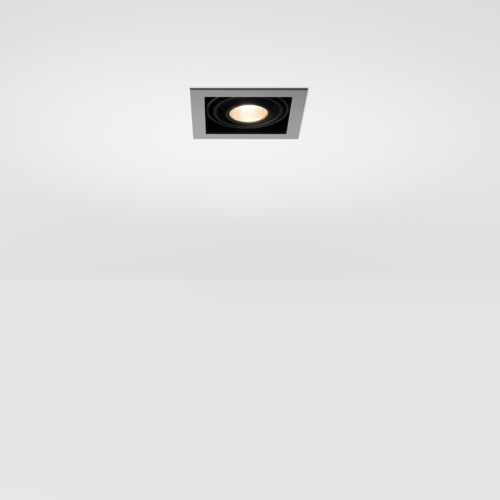

Mini-Multiple Recessed Adjustable M-LED 1x

13130009
DE White Structure
Remote Driver Excluded
Mini-Multiple Recessed Adjustable M-LED 1x
Datasheet Technical support
Request a Project Consultation
Specifications
1 Compatible light modules 2 M-LED Module 3 Installation Accessories 4 Smart Lighting Accessories 5 Back-Up Units
Downloads

Specifications
LINED_131300XX_V0.pdf
Cut-Out Size (mm)
L 110 W 110
Mounting Depth (mm)
120
Light Source Type
for M-LED
Lamp Included
No
Input Voltage
Constant current driver required
IP Rating
20
Electrical Class
III
Gross Weight (g)
668
Net Weight (g)
620
Modular logo Go to top 1 Compatible light modules 2 M-LED Module 3 Installation Accessories 4 Smart Lighting Accessories 5 Back-Up Units

1. Compatible light modules

2. M-LED Module
M-LED Module 70
Required

M-LED Module 70

14070002
M-LED Module 70 1x LED 2700K Spot DE Black Matt
14070009
M-LED Module 70 1x LED 2700K Spot DE White Structure
14070102
M-LED Module 70 1x LED 2700K Medium DE Black Matt
14070109
M-LED Module 70 1x LED 2700K Medium DE White Structure
14070202
M-LED Module 70 1x LED 2700K Flood DE Black Matt
14070209
M-LED Module 70 1x LED 2700K Flood DE White Structure
14070302
M-LED Module 70 1x LED 3000K Spot DE Black Matt
14070309
M-LED Module 70 1x LED 3000K Spot DE White Structure
14070402
M-LED Module 70 1x LED 3000K Medium DE Black Matt
14070409
M-LED Module 70 1x LED 3000K Medium DE White Structure
14070502
M-LED Module 70 1x LED 3000K Flood DE Black Matt
14070509
M-LED Module 70 1x LED 3000K Flood DE White Structure
14070602
M-LED Module 70 1x LED 4000K Spot DE Black Matt
14070609
M-LED Module 70 1x LED 4000K Spot DE White Structure
14070702
M-LED Module 70 1x LED 4000K Medium DE Black Matt
14070709
M-LED Module 70 1x LED 4000K Medium DE White Structure
14070802
M-LED Module 70 1x LED 4000K Flood DE Black Matt
14070809
M-LED Module 70 1x LED 4000K Flood DE White Structure
14070902
M-LED Module 70 1x LED 1800-3000K WD Spot DE Black Matt
14070909
M-LED Module 70 1x LED 1800-3000K WD Spot DE White Structure
14071002
M-LED Module 70 1x LED 1800-3000K WD Medium DE Black Matt
14071009
M-LED Module 70 1x LED 1800-3000K WD Medium DE White Structure
14071102
M-LED Module 70 1x LED 1800-3000K WD Flood DE Black Matt
14071109
M-LED Module 70 1x LED 1800-3000K WD Flood DE White Structure

3. Installation Accessories
  1. False Ceiling/Wall
  2. Structural Ceiling/Wall
  3. Floor
  1. Acoustic Tiles
  2. Plaster Board
  3. Stretched Fabric
  4. Wood

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
  1. Exposed Brick
  2. Exposed Concrete
  3. Plastered Brick/Concrete

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Installation Housing

Installation Housing

10400130
Installation Housing 122x257x147
Plaster Kit

Plaster Kit

10420130
Plaster Kit 255x152 - 110x110 1x
  1. Concrete
  2. Tile
  3. Wood

Be aware! Not suitable for 'Concrete'

Be aware! Not suitable for 'Tile'

Be aware! Not suitable for 'Wood'

4. Smart Lighting Accessories
Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI

5. Back-Up Units
Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400210
Back-Up Unit Constant Current 1h DE
12400310
Back-Up Unit Constant Current 3h DE

Downloads

Download all
  • Datasheet
  • Installation instructions
  • SKP file
  • OBJ file
  • FBX files
  • CAD 3D files
  • Line drawings
    • REACH_MINI-MULTIPLE_06.pdf
    • CE_13130009_04.pdf
    • UKCA_13130009_02.pdf
    • CAD3D_131300XX_MINI-MULTIPLE-FOR-LED_V0.dwg
    • SKP_131300XX_MINI-MULTIPLE-FOR-LED_01.skp
    • OBJ_131300XX_MINI-MULTIPLE-FOR-LED_01.obj
    • 3DS_131300XX_MINI-MULTIPLE-FOR-LED_01.3ds
    • FBX_131300XX_MINI-MULTIPLE-FOR-LED_01.fbx
