  1. Go back

K K 72 Recessed72 1x

14041709
IP55 LED 4000K Medium Trailing Edge RD White Structure
12W 731lm 60lm/W CRI90
K 72 Recessed 72 1x
Datasheet Technical support
Request a quote
Specifications
1 Installation Accessories 2 Decorative Accessories 3 Smart Lighting Accessories 4 Back-Up Units
Compatible with Downloads

Specifications
LINED_14040XXX_V0.pdf
Cut-Out Size (mm)
ø65
Mounting Depth (mm)
60
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
55
Delivered Lumens (lm)
731
Luminaire Power (W)
12
Efficacy (lm/W)
60
Glare Rating (UGR)
22
LED Type
LED COB
Light Sources
1
Colour Temperature
4000K
Binning (SDCM)
3
Lifetime
L80B20 @50,000 Hours

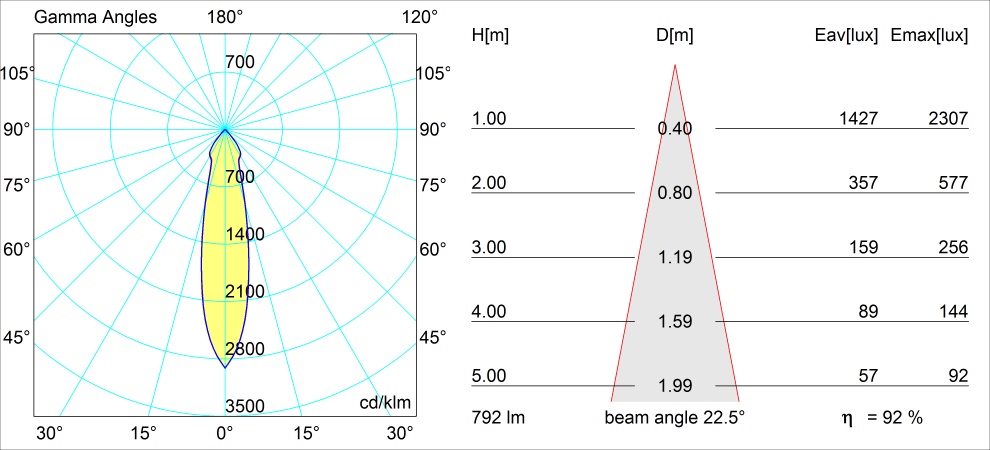

Measured Beam Angle (°)
22.5
Electrical Class
II
Dimming Protocol
Trailing edge
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
288
Net Weight (g)
236
Cut-Out Size (mm)
ø65
Mounting Depth (mm)
60
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
55
LED Type
LED COB
Light Sources
1
Colour Temperature
4000K
Binning (SDCM)
3
Lifetime
L80B20 @50,000 Hours
Measured Beam Angle (°)
22.5
Electrical Class
II
Dimming Protocol
Trailing edge
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
288
Net Weight (g)
236
Delivered Lumens (lm)
731
Luminaire Power (W)
12
Efficacy (lm/W)
60
Glare Rating (UGR)
22
Modular logo Go to top Installation Accessories 1. Decorative Accessories 2. Smart Lighting Accessories 3. Back-Up Units 4.

1. Installation Accessories

  1. False Ceiling/Wall
  2. Structural Ceiling/Wall
  3. Floor
  1. Acoustic Tiles
  2. Plaster Board
  3. Stretched Fabric
  4. Wood
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
  1. Exposed Brick
  2. Exposed Concrete
  3. Plastered Brick/Concrete
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Installation Housing

Installation Housing

10490330
Installation Housing 172x112x100
Plaster Kit

Plaster Kit

12291330
Plaster Kit 170x112 - 65 1x
  1. Concrete
  2. Tile
  3. Wood
Be aware! Not suitable for 'Concrete'
Be aware! Not suitable for 'Tile'
Be aware! Not suitable for 'Wood'

2. Decorative Accessories

K-Set

K-Set

14042009
K-Set 72 1x White Structure
14042032
K-Set 72 1x Black Structure
14042109
K-Set 72 2x White Structure
14042132
K-Set 72 2x Black Structure

3. Smart Lighting Accessories

Casambi Module

Casambi Module

13470101
Dim Module Casambi Trailing Edge
Casambi Switch

Casambi Switch

13470109
Switch Casambi White

4. Back-Up Units

Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400210
Back-Up Unit Constant Current 1h DE
12400310
Back-Up Unit Constant Current 3h DE

Downloads

Download all ;
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_1011276_V8 927.jpg
    • CRI_1011277_V8 930.jpg
    • CRI_1011321_BRIDGELUX_V8_935.jpg
    • CRI_1011322_V8 940.jpg
    • TM30_1011276_V8 927.jpg
    • TM30_1011277_V8 930.jpg
    • TM30_1011321_BRIDGELUX_V8_935.jpg
    • TM30_1011322_V8 940.jpg
  • Tender text
    • REACH_K_06.pdf
    • CE_14041709_04.pdf
    • UKCA_14041709_02.pdf
  • Line drawings
  • SKP files
    • CAD3D_140401XX_REC_K72_LED_V0.dwg
    • CAD2D_REC_K72-K77_V0.dwg
    • OBJ_140401XX_REC_K72_LED_01.obj
    • SKP_140401XX_REC_K72_LED_01.skp
    • 3DS_140401XX_REC_K72_LED_01.3ds
    • FBX_140401XX_REC_K72_LED_01.fbx
    • ELABEL_BridgeluxV8G6_2700K.pdf
    • ELABEL_BridgeluxV8G6_4000K.pdf
    • ELABEL_BridgeluxV8G6_3500K.pdf
    • ELABEL_BridgeluxV8G6_3000K.pdf
