Impulse Round Impulse Round Wall1x

13770132
LED 3000K Trailing Edge DI Black Structure
7.5W 508lm 68lm/W CRI90
Impulse Round Wall 1x
Datasheet Technical support
Request a quote
Specifications Smart Lighting Accessories Compatible with Downloads

Specifications
LINED_137700XX_01.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
20
Delivered Lumens per Lamp Unit (lm)
508
Luminaire Power (W)
7.5
Efficacy (lm/W)
68
Glare Rating (UGR)
1
  • Recommended installation height min. 185 cm
LED Type
LED PCB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
3
Lifetime
L80B10 @50,000 Hours

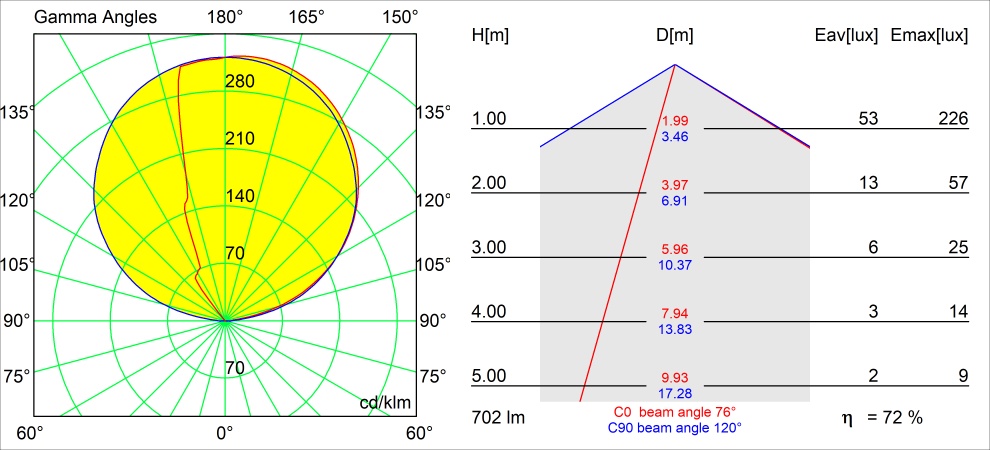

Measured Beam Angle (°)
120
CIE Flux Code
0, 0, 0, 0, 72
Electrical Class
I
Dimming Protocol
Trailing edge
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
963
Net Weight (g)
708
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
20
LED Type
LED PCB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
3
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
120
CIE Flux Code
0, 0, 0, 0, 72
Electrical Class
I
Dimming Protocol
Trailing edge
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
963
Net Weight (g)
708
  • Recommended installation height min. 185 cm
Delivered Lumens per Lamp Unit (lm)
508
Luminaire Power (W)
7.5
Efficacy (lm/W)
68
Glare Rating (UGR)
1

1. Smart Lighting Accessories

Casambi Module

Casambi Module

13470101
Dim Module Casambi Trailing Edge
Casambi Switch

Casambi Switch

13470109
Switch Casambi White

Downloads

Download all ;
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_3018934_PCB-IMPULSE-927_01.JPG
    • CRI_3018935_PCB-IMPULSE-930_01.JPG
    • CRI_3018936_PCB-IMPULSE-935_01.JPG
    • TM30_3018934_PCB-IMPULSE-927_01.JPG
    • TM30_3018935_PCB-IMPULSE-930_01.JPG
    • TM30_3018936_PCB-IMPULSE-935_01.JPG
  • Tender text
    • REACH_IMPULSE_06.pdf
    • EPD_MODULAR_IMPULSE_ROUND_WALL_1X_IP44_LED_DE_EU_01.pdf
    • EPD_MODULAR_IMPULSE_ROUND_WALL_1X_LED_DI_EU_01.pdf
    • CE_13770132_04.pdf
    • UKCA_13770132_02.pdf
  • Line drawings
  • SKP files
    • FBX_137700XX_IMPULSE_ROUND_01.3ds
    • OBJ_137700XX_IMPULSE_ROUND_01.obj
    • CAD3D_137700XX_IMPULSE_ROUND_01.dwg
    • SKP_137700XX_IMPULSE_ROUND_01.skp
    • 3DS_137700XX_IMPULSE_ROUND_01.3ds
    • CAD2D_SURF_IMPULSE_01.dwg
    • ELABEL_IMPULSE_2700K.pdf
    • ELABEL_IMPULSE_3000K.pdf
    • ELABEL_IMPULSE_3500K.pdf
