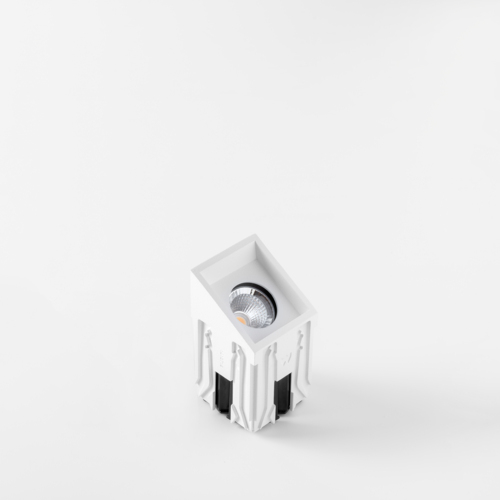

Qbini Asy 1x IP55 LED 2700K Medium DE White Structure

11470009

IP55 LED 2700K Medium DE White Structure

500mA 8.8Vf 4.4W 428lm 100lm/W CRI90

Caractéristiques

Type de Source Lumineuse: LED
Ampoule incluse: Oui
Tension d’Entrée: Driver à courant constant requis
Indice de protection IP: 55

Courant du driver (mA)

350

500

Flux lumineux par lampe (lm)

317

428

Charge Connectée LED (W)

4.4

Min. LED Fwd Voltage (Vf)

7.5

7.8

Max. LED Fwd Voltage (Vf)

9.5

9.8

Efficacité (lm/W)

106

100

UGR

Type de LED: LED COB
Nombre de Sources Lumineuses: 1
Température de Couleur: 2700K
Binning (SDCM): 2
Durée de Vie: L90B10 à 50 000 heures

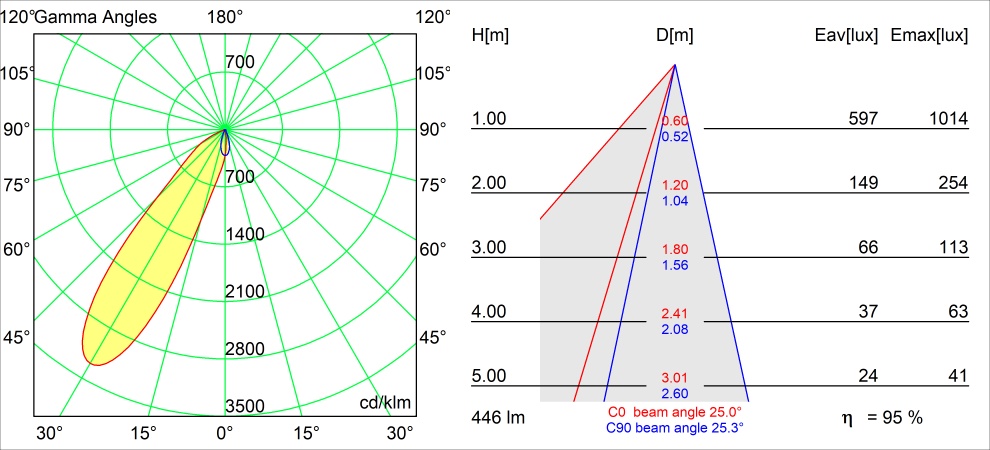

Angle du faisceau mesuré (°): 25
productCIEFluxCode: 74, 96, 99, 100, 96
Classe Électrique: III
Essai au fil incandescent (°C): 960°C
Intérieur/extérieur: Intérieur

Ajustabilité: Not applicable
Poids brut (g): 239
Poids net (g): 195

Type de Source Lumineuse: LED
Ampoule incluse: Oui
Tension d’Entrée: Driver à courant constant requis
Indice de protection IP: 55

Type de LED: LED COB
Nombre de Sources Lumineuses: 1
Température de Couleur: 2700K
Binning (SDCM): 2
Durée de Vie: L90B10 à 50 000 heures
Angle du faisceau mesuré (°): 25
productCIEFluxCode: 74, 96, 99, 100, 96
Classe Électrique: III
Essai au fil incandescent (°C): 960°C
Intérieur/extérieur: Intérieur

Ajustabilité: Not applicable
Poids brut (g): 239
Poids net (g): 195

Courant du driver (mA)

350

500

Flux lumineux par lampe (lm)

317

428

Charge Connectée LED (W)

4.4

Min. LED Fwd Voltage (Vf)

7.5

7.8

Max. LED Fwd Voltage (Vf)

9.5

9.8

Efficacité (lm/W)

106

100

UGR

1. Driver

500mA

Article	Driver	Produits min	Produits max	Dimension
11630130	LED Driver Constant Current Deep Dim DALI 500mA 20W	1	4	160 x 41.5 x 30.5
11630430	LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W	1	4	160 x 41.5 x 30.5
11630730	LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output	1	10	152.5 x 76.2 x 30.1
11631030	LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD	1	10	152.5 x 76.2 x 30.1
11631430	LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W	2	3	111 x 35 x 20
12400330	LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W	1	4	166 x 46 x 34
12403430	LED Driver Constant Current Non-Dim 350-1050mA 25-50W	1	7	124 x 79 x 22
12404330	LED Driver Constant Current Trailing Edge 500mA 20W	3	4	111 x 52 x 22
12404930	LED Driver Constant Current Trailing Edge 500mA 5-10W	2	2	102 x 39 x 21
12405630	LED Driver Constant Current DALI 300-1050mA 16-36W	2	5	146.5 x 44 x 30
12406530	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD	1	7	124 x 79 x 22
12406630	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD	1	7	124 x 79 x 22
12406730	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W	1	7	124 x 79 x 22
12406830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W	1	7	124 x 79 x 22
12407130	LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W	2	5	146.5 x 44 x 30
12407630	LED Driver Constant Current DALI 250-700mA 10-20W	1	4	110.4 x 52 x 22
12407730	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W	1	4	110.4 x 52 x 22
12407830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W	1	11	124 x 79 x 22
12407930	LED Driver Constant Current DALI 250-700mA 10-20W WD	1	4	110.4 x 52 x 22
12408030	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD	1	4	111 x 52 x 22
12408130	LED Driver Constant Current DALI 250-700mA 15-32W WD	1	4	103 x 67 x 21
12408330	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD	1	11	124 x 79 x 22
12409130	LED Driver Constant Current Deep Dim 0-10V/1-10V 350-700mA 12W	2	2	135 x 30 x 20
13470030	LED Driver Constant Current Casambi 300-1050mA 16-38W	2	5	146.5 x 44 x 30
13470130	LED Driver Constant Current Casambi 350-1050mA 25-60W	1	7	124 x 79 x 22
13550030	LED Driver Constant Current Non-Dim 500mA 12W	1	2	115 x 34 x 19
13551630	LED Driver Constant Current Deep Dim DALI 350-700mA 12W	2	2	135 x 30 x 20
13552030	LED Driver Constant Current Trailing Edge 350-700mA 4-14W	2	2	128.8 x 32 x 25.7
13552330	LED Driver Constant Current DALI/Push-Dim 500mA 13W	1	2	128.8 x 32 x 25.7
13553030	LED Driver Constant Current Non-Dim 450-600mA 25W	3	4	129 x 43 x 23
13630100	LED Driver Constant Current Zigbee 350-1050mA 25-60W	1	7	124 x 79 x 22

Afficher plus

2. Accessoires d'Eclairage d'installation

Qbini Box Surface 1x

13120009

Qbini Box Surface 1x DE White Structure

13120032

Qbini Box Surface 1x DE Black Structure

Qbini Box Surface 2x

13120109

Qbini Box Surface 2x DE White Structure

13120132

Qbini Box Surface 2x DE Black Structure

13120209

Qbini Box Surface 2x Trailing Edge DI 500mA White Structure

13120232

Qbini Box Surface 2x Trailing Edge DI 500mA Black Structure

13120309

Qbini Box Surface 2x 1-10V/Push-Dim DI 500mA White Structure

13120332

Qbini Box Surface 2x 1-10V/Push-Dim DI 500mA Black Structure

13120409

Qbini Box Surface 2x DALI DI 500mA White Structure

13120432

Qbini Box Surface 2x DALI DI 500mA Black Structure

13120509

Qbini Box Surface 2x 1800-3000K WD Trailing Edge DI 250mA White Structure

13120532

Qbini Box Surface 2x 1800-3000K WD Trailing Edge DI 250mA Black Structure

Qbini Frame Recessed 1x

14171009

Qbini Frame Recessed 1x White Structure

14171032

Qbini Frame Recessed 1x Black Structure

Qbini Frame Recessed 2x

14172009

Qbini Frame Recessed 2x White Structure

14172032

Qbini Frame Recessed 2x Black Structure

Qbini Frame Recessed 3x

14173009

Qbini Frame Recessed 3x White Structure

14173032

Qbini Frame Recessed 3x Black Structure

Qbini Frame Recessed 4x

14174009

Qbini Frame Recessed 4x White Structure

14174032

Qbini Frame Recessed 4x Black Structure

Qbini Frame Recessed Trimless 1x

14180009

Qbini Frame Recessed Trimless 1x White Matt

14180032

Qbini Frame Recessed Trimless 1x Black Matt

Qbini Frame Recessed Trimless 2x

14180109

Qbini Frame Recessed Trimless 2x White Matt

14180132

Qbini Frame Recessed Trimless 2x Black Matt

Qbini Frame Recessed Trimless 3x

14180209

Qbini Frame Recessed Trimless 3x White Matt

14180232

Qbini Frame Recessed Trimless 3x Black Matt

Qbini Frame Recessed Trimless 4x

14180309

Qbini Frame Recessed Trimless 4x White Matt

14180332

Qbini Frame Recessed Trimless 4x Black Matt

3. Accessoires d'Eclairage optiques

Crossblade 26

14193032

Crossblade 26 Black Matt

Honeycomb 26

14191032

Honeycomb 26 Black Matt

Snoot 26

14192032

Snoot 26 Black Matt

4. Accessoires d'Eclairage intelligents

Casambi Module

13470100

Dim Module Casambi 1-10V

13470101

Dim Module Casambi Trailing Edge

13470102

Dim Module Casambi DALI

Casambi Switch

13470109

Switch Casambi White

Hue Bridge

70000616

Bridge Hue EU White

70000617

Bridge Hue UK White

Hue Module

13190230

Dim Module Hue 0-10V/1-10V 150-300W

Hue Sensor

70000191

Motion Sensor Hue Outside Black

70008054

Motion Sensor Hue White

Hue Switch

70000213

Switch Smart Button Hue White

70000214

Switch Wall Module Hue

70000223

Switch Dimmer Hue White

Zigbee Module

13630200

Dim Module Zigbee DALI

5. Unité de Secours

Back-Up Unit Constant Current

12400210

Back-Up Unit Constant Current 1h DE

12400310

Back-Up Unit Constant Current 3h DE
