11463084

LED 2700K Medium DE Silver Bronze Brushed Anodised

500mA 16.9Vf 8.5W 599lm 71lm/W CRI90

Tableau des compatibilités

Caractéristiques

Type de Source Lumineuse: LED
Ampoule incluse: Oui
Tension d’Entrée: Driver à courant constant requis
Indice de protection IP: 20

Courant du driver (mA)

350

500

Lumens fournis (lm)

444

599

Charge Connectée LED (W)

5.7

8.5

Min. LED Fwd Voltage (Vf)

14.8

15.2

Max. LED Fwd Voltage (Vf)

18.6

Efficacité (lm/W)

UGR

3500K et 4000K sur demande

Type de LED: LED COB
Nombre de Sources Lumineuses: 1
Température de Couleur: 2700K
Binning (SDCM): 2
Durée de Vie: L80B10 à 50 000 heures

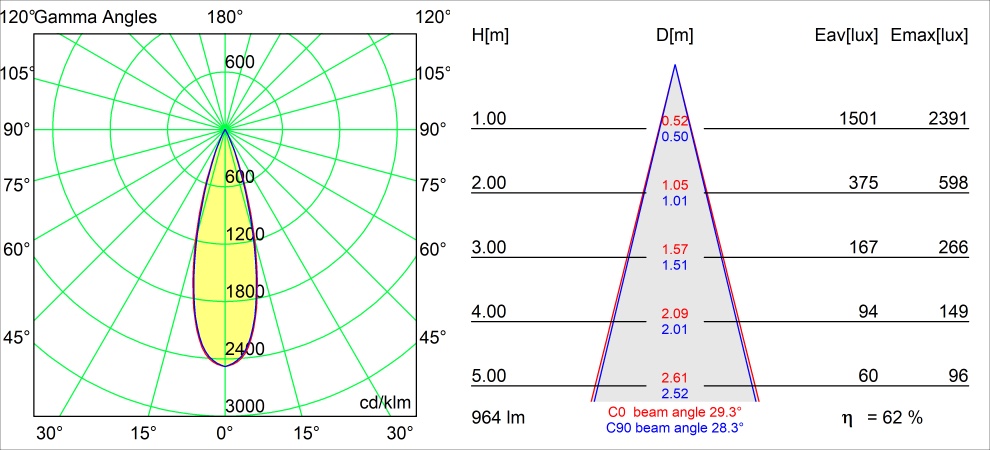

Angle du faisceau mesuré (°): 29.3
productCIEFluxCode: 100, 100, 100, 100, 62
Classe Électrique: III
Essai au fil incandescent (°C): 960°C
Intérieur/extérieur: Intérieur

Ajustabilité: H 360° v 0°/+90°
Poids brut (g): 258
Poids net (g): 198

Type de Source Lumineuse: LED
Ampoule incluse: Oui
Tension d’Entrée: Driver à courant constant requis
Indice de protection IP: 20

Type de LED: LED COB
Nombre de Sources Lumineuses: 1
Température de Couleur: 2700K
Binning (SDCM): 2
Durée de Vie: L80B10 à 50 000 heures
Angle du faisceau mesuré (°): 29.3
productCIEFluxCode: 100, 100, 100, 100, 62
Classe Électrique: III
Essai au fil incandescent (°C): 960°C
Intérieur/extérieur: Intérieur

Ajustabilité: H 360° v 0°/+90°
Poids brut (g): 258
Poids net (g): 198

3500K et 4000K sur demande

Courant du driver (mA)

350

500

Lumens fournis (lm)

444

599

Charge Connectée LED (W)

5.7

8.5

Min. LED Fwd Voltage (Vf)

14.8

15.2

Max. LED Fwd Voltage (Vf)

18.6

Efficacité (lm/W)

UGR

1. Driver

500mA

Article	Driver	Produits min	Produits max	Dimension
11630130	LED Driver Constant Current Deep Dim DALI 500mA 20W	1	2	160 x 41.5 x 30.5
11630430	LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W	1	2	160 x 41.5 x 30.5
11630730	LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output	1	4	152.5 x 76.2 x 30.1
11631030	LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD	1	4	152.5 x 76.2 x 30.1
11631430	LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W	1	1	111 x 35 x 20
12400330	LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W	1	2	166 x 46 x 34
12403430	LED Driver Constant Current Non-Dim 350-1050mA 25-50W	1	3	124 x 79 x 22
12404330	LED Driver Constant Current Trailing Edge 500mA 20W	2	2	111 x 52 x 22
12404930	LED Driver Constant Current Trailing Edge 500mA 5-10W	1	1	102 x 39 x 21
12405630	LED Driver Constant Current DALI 300-1050mA 16-36W	1	2	146.5 x 44 x 30
12406530	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD	1	3	124 x 79 x 22
12406630	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD	1	3	124 x 79 x 22
12406730	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W	1	3	124 x 79 x 22
12406830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W	1	3	124 x 79 x 22
12407130	LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W	1	2	146.5 x 44 x 30
12407630	LED Driver Constant Current DALI 250-700mA 10-20W	1	2	110.4 x 52 x 22
12407730	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W	1	2	110.4 x 52 x 22
12407830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W	1	6	124 x 79 x 22
12407930	LED Driver Constant Current DALI 250-700mA 10-20W WD	1	2	110.4 x 52 x 22
12408030	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD	1	2	111 x 52 x 22
12408130	LED Driver Constant Current DALI 250-700mA 15-32W WD	1	2	103 x 67 x 21
12408330	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD	1	6	124 x 79 x 22
12409130	LED Driver Constant Current 0-10V/1-10V 350-700mA 12W	1	1	135 x 30 x 20
12409430	LED Driver Constant Current DALI 500mA 10W	1	1	145 x 31 x 21
13470030	LED Driver Constant Current Casambi 300-1050mA 16-38W	1	2	146.5 x 44 x 30
13470130	LED Driver Constant Current Casambi 350-1050mA 25-60W	1	3	124 x 79 x 22
13550030	LED Driver Constant Current Non-Dim 500mA 12W	1	1	115 x 34 x 19
13551630	LED Driver Constant Current Deep Dim DALI 350-700mA 12W	1	1	135 x 30 x 20
13552030	LED Driver Constant Current Trailing Edge 350-700mA 4-14W	1	1	128.8 x 32 x 25.7
13630100	LED Driver Constant Current Zigbee 350-1050mA 25-60W	1	3	124 x 79 x 22
