70000156

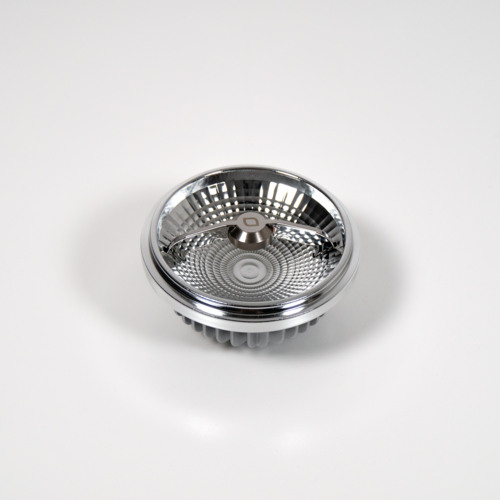

FFD_OPTILED LV D AR111 12.5W 350mA 927 20°

350mA 36Vf 13W 730lm 56lm/W CRI80

Caractéristiques

Température de Couleur: 2700K
Type de Source Lumineuse: LED
Nombre de Sources Lumineuses: 1
Tension d’Entrée: Driver à courant constant requis
Poids brut (g): 284

Classe Électrique: III
Indice de protection IP: 20
Durée de Vie: 35 000 heures
Poids brut (g): 284
Poids net (g): 204

Courant du driver (mA)

350

Lumens fournis (lm)

730

Charge Connectée LED (W)

Min. LED Fwd Voltage (Vf)

Max. LED Fwd Voltage (Vf)

Efficacité (lm/W)

Combinez avec un pilote de LED de 350mA

Téléchargements

Tout télécharger

Fiche technique

Drivers

Article	Driver	Produits min	Produits max	Dimension
11630030	LED Driver Constant Current Deep Dim DALI 350mA 20W	1	1	160 x 41.5 x 30.5
11630330	LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 20W	1	1	160 x 41.5 x 30.5
11630630	LED Driver Constant Current Deep Dim DALI 350mA 50W 2 LED Output WD	1	2	152.5 x 76.2 x 30.1
11630930	LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 50W 2 LED Output WD	1	2	152.5 x 76.2 x 30.1
11631430	LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W	1	1	111 x 35 x 20
12400330	LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W	1	1	166 x 46 x 34
12403430	LED Driver Constant Current Non-Dim 350-1050mA 25-50W	1	1	124 x 79 x 22
12404230	LED Driver Constant Current Trailing Edge 350mA 18W	1	1	111 x 52 x 22
12405630	LED Driver Constant Current DALI 300-1050mA 16-36W	1	1	146.5 x 44 x 30
12406530	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD	1	1	124 x 79 x 22
12406630	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD	1	1	124 x 79 x 22
12406730	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W	1	1	124 x 79 x 22
12406830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W	1	1	124 x 79 x 22
12407130	LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W	1	1	146.5 x 44 x 30
12407630	LED Driver Constant Current DALI 250-900mA 10-20W	1	1	110.4 x 52 x 22
12407730	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W	1	1	110.4 x 52 x 22
12407830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W	1	3	124 x 79 x 22
12407930	LED Driver Constant Current DALI 250-700mA 10-20W WD	1	1	110.4 x 52 x 22
12408030	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD	1	1	111 x 52 x 22
12408130	LED Driver Constant Current DALI 250-700mA 15-32W WD	1	1	103 x 67 x 21
12408330	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD	1	3	124 x 79 x 22
13470030	LED Driver Constant Current Casambi 300-1050mA 16-38W	1	1	146.5 x 44 x 30
13470130	LED Driver Constant Current Casambi 350-1050mA 25-60W	1	1	124 x 79 x 22
13550130	LED Driver Constant Current Non-Dim 350mA 15W	1	1	115 x 34 x 19
13630100	LED Driver Constant Current Zigbee 350-1050mA 25-60W	1	1	124 x 79 x 22

Afficher plus

Accessoires

Accessoire requis

LED Driver Constant Current

12400330

LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W

12403430

LED Driver Constant Current Non-Dim 350-1050mA 25-50W

12404030

LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 1050-2100mA 45-55W

12404230

LED Driver Constant Current Trailing Edge 350mA 18W

12404330

LED Driver Constant Current Trailing Edge 500mA 20W

12404830

LED Driver Constant Current Trailing Edge 350mA 5-10W

12404930

LED Driver Constant Current Trailing Edge 500mA 5-10W

12405630

LED Driver Constant Current DALI 300-1050mA 16-36W

12405730

LED Driver Constant Current Trailing Edge/Push-Dim 1050-2100mA 45-50W

12406530

LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD

12406630

LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD

12406730

LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W

12406830

LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W

12407130

LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W

12407230

LED Driver Constant Current Trailing Edge 250mA 3-7W

12407630

LED Driver Constant Current DALI 250-900mA 10-20W

12407730

LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W

12407830

LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W

12407930

LED Driver Constant Current DALI 250-700mA 10-20W WD

12408030

LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD

12408130

LED Driver Constant Current DALI 250-700mA 15-32W WD

12408330

LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD

12408530

LED Driver Constant Current Trailing Edge 700mA 20W

12409130

LED Driver Constant Current 0-10V/1-10V 350-700mA 12W

12409230

LED Driver Constant Current DALI 250mA 10W WD

12409330

LED Driver Constant Current DALI 350mA 10W

12409430

LED Driver Constant Current DALI 500mA 10W

12409530

LED Driver Constant Current DALI 700mA 10W

12409630

LED Driver Constant Current Trailing Edge 250mA 12W

13550030

LED Driver Constant Current Non-Dim 500mA 12W

13550130

LED Driver Constant Current Non-Dim 350mA 15W

Accessoire requis

LED Driver Constant Current Casambi

13470030

LED Driver Constant Current Casambi 300-1050mA 16-38W

13470130

LED Driver Constant Current Casambi 350-1050mA 25-60W

Accessoire requis

LED Driver Constant Current Deep Dim

11630030

LED Driver Constant Current Deep Dim DALI 350mA 20W

11630130

LED Driver Constant Current Deep Dim DALI 500mA 20W

11630230

LED Driver Constant Current Deep Dim DALI 700mA 20W

11630330

LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 20W

11630430

LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W

11630530

LED Driver Constant Current Deep Dim 0-10V/1-10V 700mA 20W

11630630

LED Driver Constant Current Deep Dim DALI 350mA 50W 2 LED Output WD

11630730

LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output

11630830

LED Driver Constant Current Deep Dim DALI 700mA 50W 2 LED Output WD

11630930

LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 50W 2 LED Output WD

11631030

LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD

11631130

LED Driver Constant Current Deep Dim 0-10V/1-10V 700mA 50W 2 LED Output WD

11631230

LED Driver Constant Current Deep Dim DALI 250mA 20W

11631330

LED Driver Constant Current Deep Dim 0-10V/1-10V 250mA 20W

11631430

LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W

13551630

LED Driver Constant Current Deep Dim DALI 350-700mA 12W

Accessoire requis

LED Driver Constant Current Zigbee

13630100

LED Driver Constant Current Zigbee 350-1050mA 25-60W
