Resumen técnico
Resumen técnico
Ficha técnica
¿Necesita información técnica sobre este sistema de perfiles? Haga clic para descargar una hoja de especificaciones dedicada.- Dimensiones
- 80mm x 50mm (h x w)
- Grosor de la base
- 1.5mm
- Techniques:

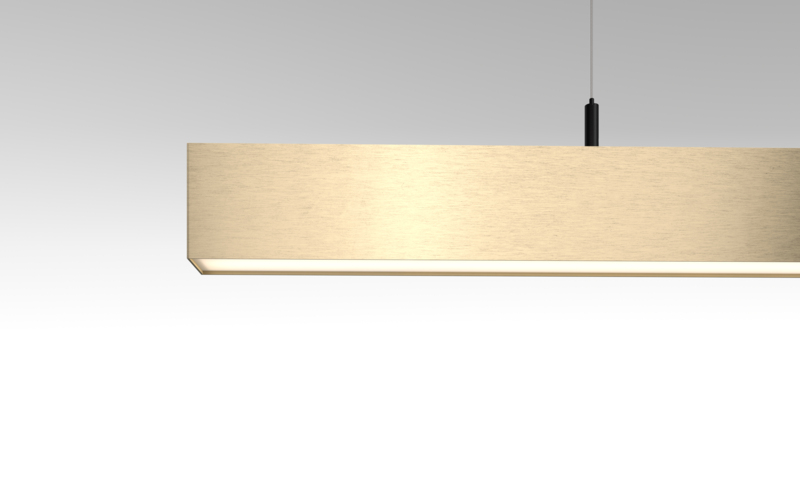

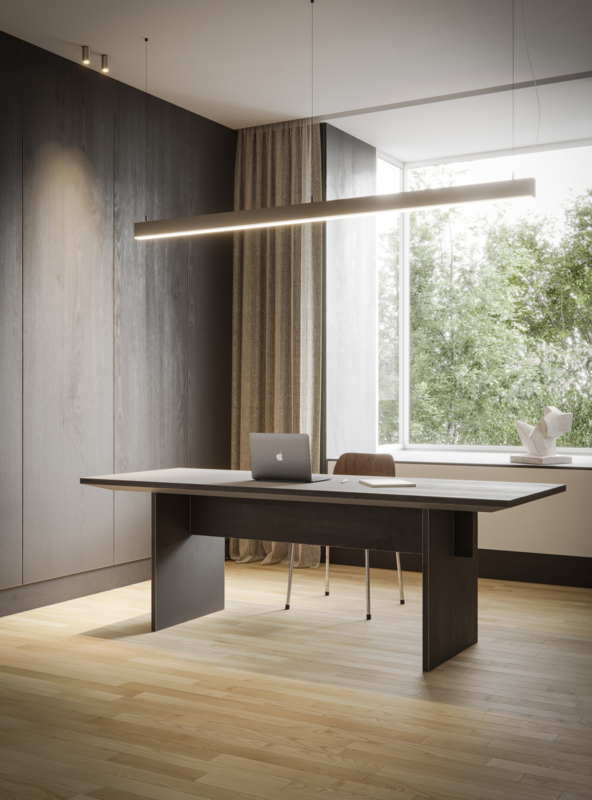

- Ceiling suspended
- Interio/Exterior
- Indoor
- Acabado
-
Anodised: aluminium
Brushed anodised: bronze, champagne, silver bronze
Fine structured scratch resistant powder coating: black, white - Clasificación del IP
- IP20
- Prueba del hilo incandescente
- 960°C
- CRI
- 90+
- Garantía
- 5 years on LED lamps, 2 years on drivers
- Módulo de iluminación lineal
-
High power LED line
2700K, 3000K, 4000K, 2700K-6500K tunable white
Non-dimmable, Dali/Pushdim: Flicker-free (AM dimming)
Available in preset dimmed version 50% - Módulo de iluminación spot
-
LED Array
Medium (25°), Flood (40°)
2700K, 3000K, 4000K
Trailing edge, 1-10V, Dali/Pushdim
Base Profile SLD50
This base profile is merely 1.5mm thick and made of aluminium to ensure minimum weight, strength and durability. It comes with a maximum extruded length of 4 meters, thus offering the double benefit of preventing bending during transportation and making the profile easy to handle during installation.
Cover SLD50
This aluminium cover matches the material of the base profile to ensure a consistent look. Click in-and-out, even after installation, to remove it without having to dismount the profile. The cover comes in a selection of colours to offer the choice of adding an accent or going monochrome for a more understated look.

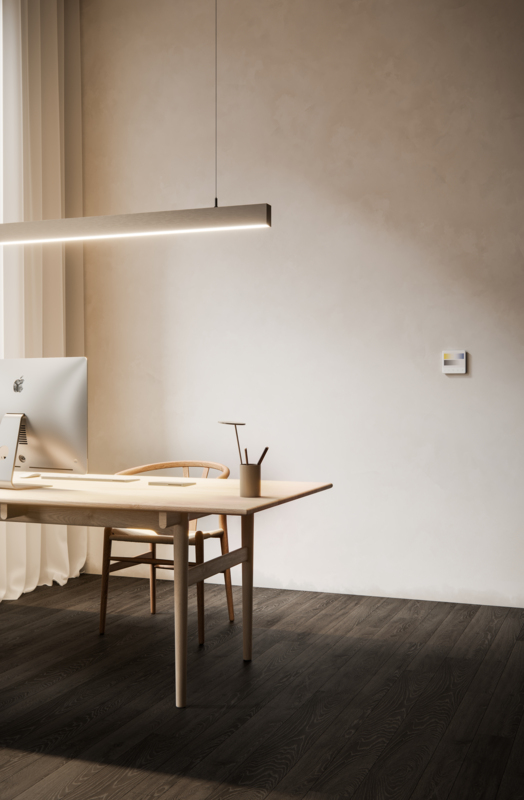

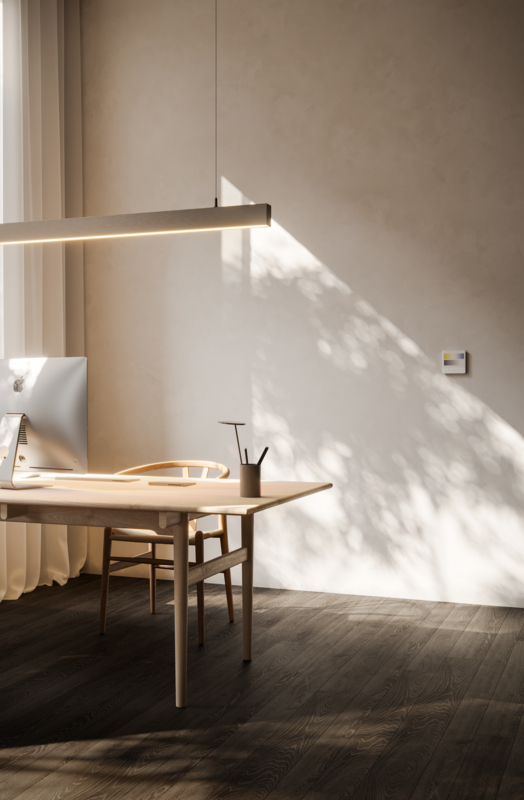

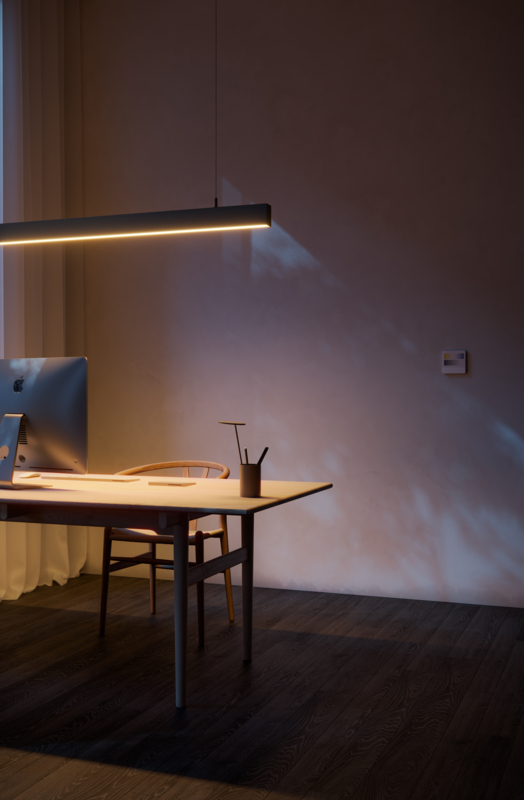

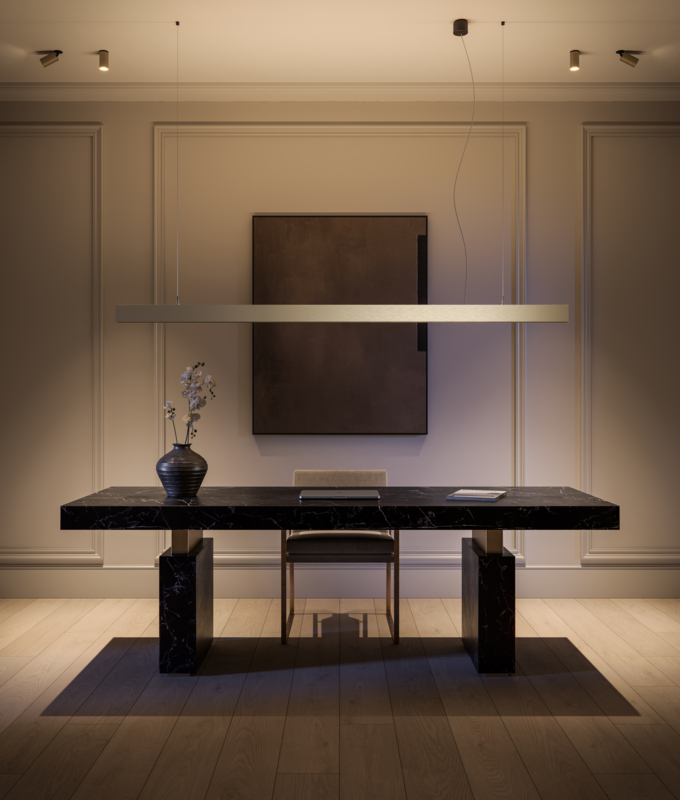

Diffuser Poly In SLD50
The Poly In diffuser is flush mounted against the cover for a seamless design. Made of polycarbonate, this is a durable diffuser which keeps its quality over time. Click it-in and out for an easy installation and dismounting.

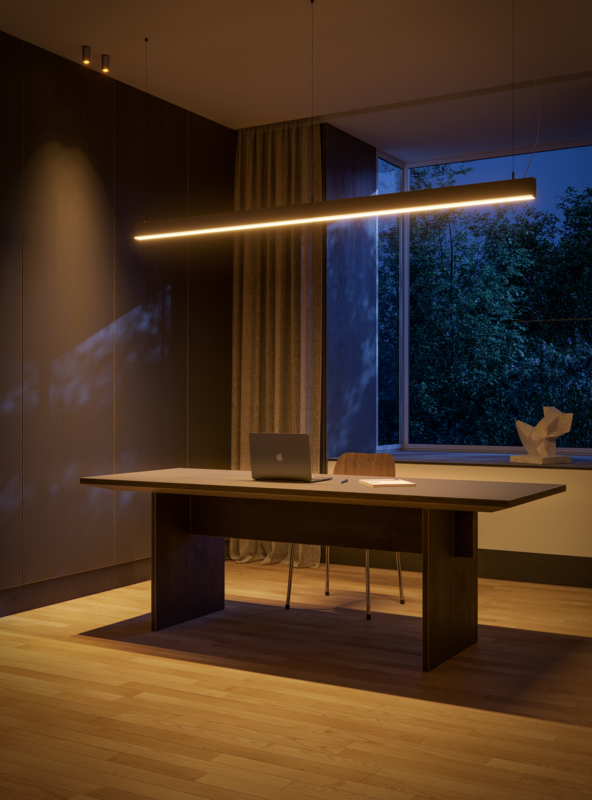

Diffuser Poly Out SLD50
The Poly Out diffuser protrudes from the profile, thus extending its height slightly to add a certain edge. Made of polycarbonate, this is a durable diffuser which keeps its quality over time. Click it-in and out for an easy installation and dismounting.
Diffuser Prismatic SLD50
Prismatic diffusers offer maximum reduction of glare and improve the UGR rating profiles. Made of polycarbonate, this is a durable diffuser which keeps its quality over time. Click it-in and out for an easy installation and dismounting.
Modupoint system
Modupoint system
Modupoint LED
- Combina con Marbulito Jack, Marbulito Jack Suspended, Medard Jack, Minude Jack, Minude Jack Suspended
- 2700K, 3000K, 4000K (bajo pedido), Warm Dim
- Trailing Edge, 1-10V/Pushdim, Dali
Módulo de iluminación spot
Módulo de iluminación spot

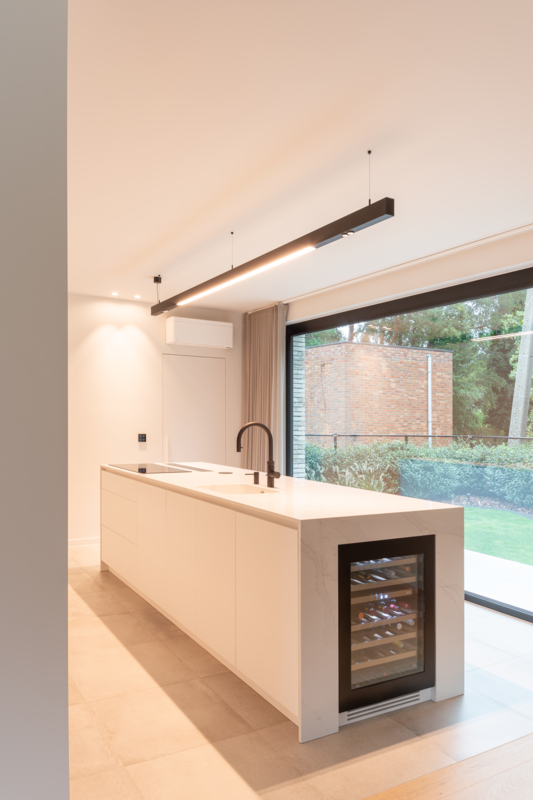

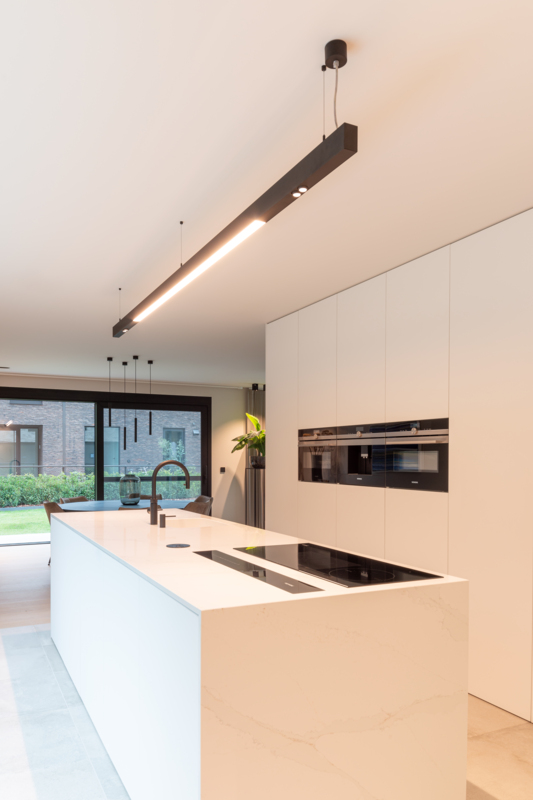

Eyeball 1x
- 2700K, 3000K, 4000K (no disponible para SLD50 Naked)
- Trailing edge, 1-10V, Dali/Pushdim
- 523lm (2700K) 544lm (3000K) 595lm (4000K)
Modupoint LED Stick
Marbulito Jack Adjustable 41 1x
- 2700K, 3000K
- 1-10V, Pushdim, DALI y Trailing Edge
- 322lm (2700K), 702lm (3000K)
- Modupoint LED Stick necesario cuando se utiliza con SLD50 High y SLD50 Naked
Marbulito Jack Suspended 41 1x
- 2700K, 3000K
- 1-10V, Pushdim, DALI y Trailing Edge
- 322lm (2700K), 702lm (3000K)

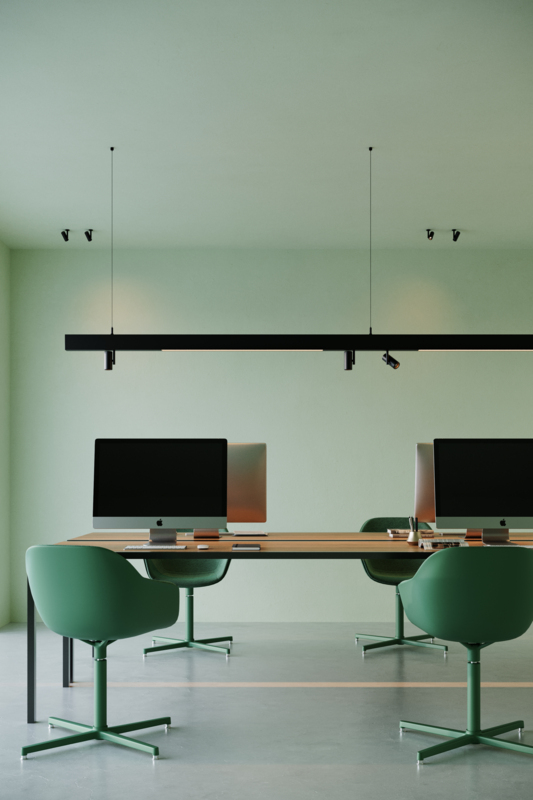

Medard Jack Adjustable 42 1x
- 2700K, 3000K, 1800-3000K (Warm Dim)
- 1-10V, Pushdim, DALI y Trailing Edge
- 681lm (2700K), 695lm (3000K), 367lm (1800-3000K)
- Modupoint LED Stick necesario cuando se utiliza con SLD50 High y SLD50 Naked

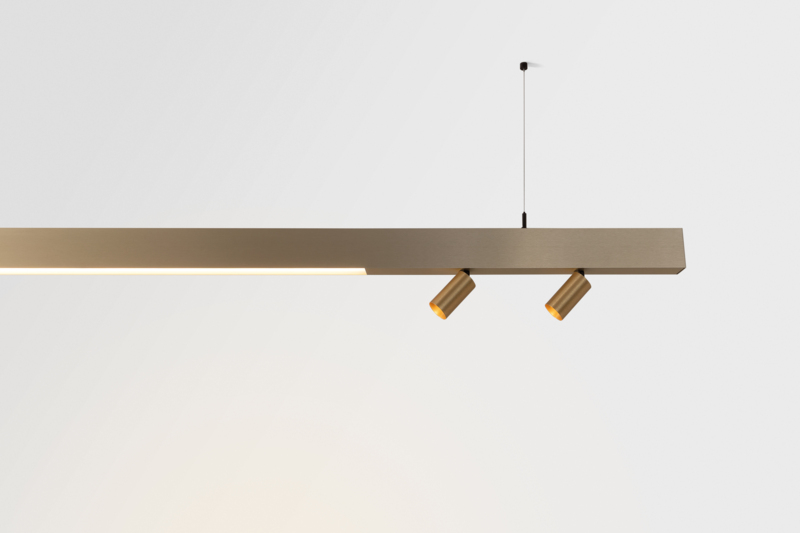

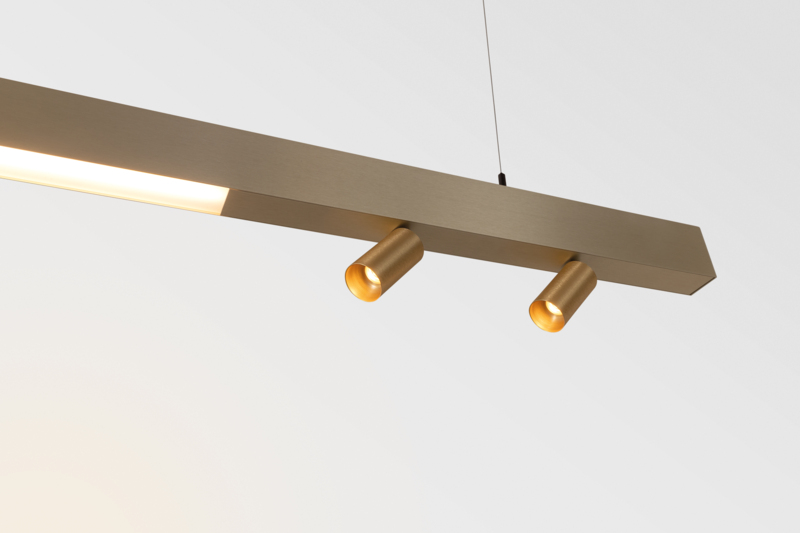

Minude Jack Adjustable 45 1x
- 2700K, 3000K
- 1-10V, Pushdim, DALI y Trailing Edge
- 598lm (2700K), 610lm (3000K)
- Modupoint LED Stick necesario cuando se utiliza con SLD50 High y SLD50 Naked
Minude Jack Suspended 45 1x
- 2700K, 3000K
- 1-10V, Pushdim, DALI y Trailing Edge
- 598lm (2700K), 610lm (3000K)
Gamin Jack 90 1x
- 2700K, 3000K, 4000K and 1800-3000K (Warm Dim)
- 1-10V, Pushdim, DALI y Trailing Edge
- 676lm (2700K), 702lm (3000K), 365lm (1800-3000K)
- Modupoint LED Stick necesario cuando se utiliza con SLD50 High y SLD50 Naked
Módulo de iluminación lineal
Módulo de iluminación lineal
Linear LED Fortimo LEDline
- 2700K, 3000K, 4000K
- No regulable, Dali/Pushdim
- >2000lm/m
Linear LED Fortimo LEDline Tunable
- 2700K-6500K
- Dali
- 1781lm/m (2700K) - 1801lm/m (6500K)
Linear LED Strip 24V Uplight Mounted
- 2700K, 3000K, 4000K
- No regulable, 1-10 V, Dali/Pushdim
- 1000lm/m, 2000lm/m, 3600lm/m
Linear LED Fortimo LEDline Preset 50%
- 2700K, 3000K, 4000K
- No regulable
- >1000lm/m
